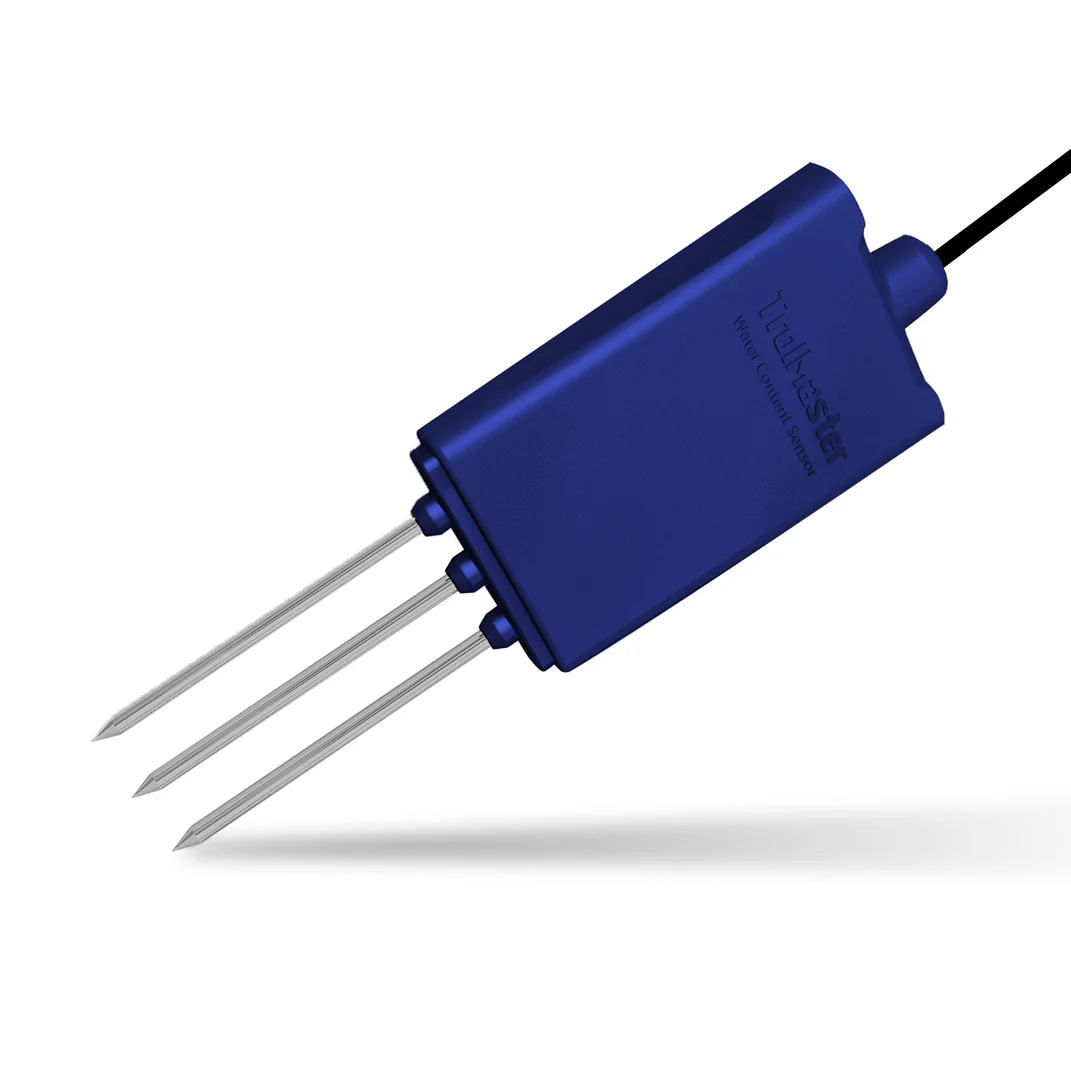

(WCS-1) Water Content Sensor for Aqua-X System

Overview



TrolMaster's WCS-1 water content sensor allows the user to monitor the % of water / nutrients within the growing medium. The moisture level / water content is displayed in real-time on the WCS module itself, the Aqua-x (or Hydro-X Pro) and the APP. That data is displayed on a graph (through the APP) and helps the user visualize the dry-down time, and to make adjustments to their irrigation timers / irrigation cycles.

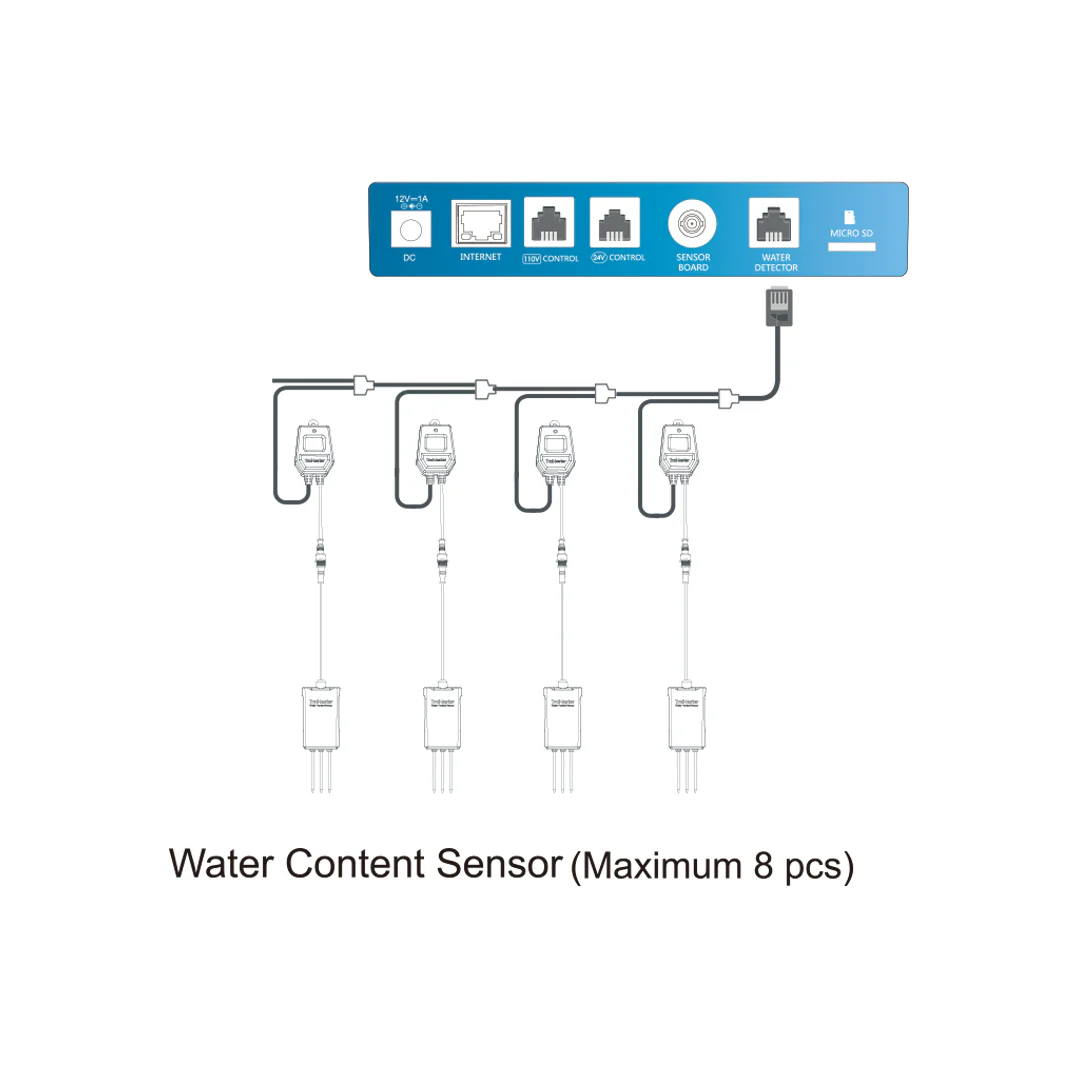

Up to 8 WCS-1 can be connected to a single Aqua-x. When multiple WCS-1 are connected to a single Aqua-X, the displayed value on the Aqua-x and APP will be the AVERAGE of all of the sensors.

* WCS-1 can only be used with the Aqua-X (NFS-1) and the Hydro-X Pro (HCS-2).



Features

• LCD Display, Easy Operation

• Addressing Button

• Water Content Real-time Measuring
Water Content
• Alarm When Setpoint Exceeded





Specifications

Input Voltage : Max Input Current : Working Temperature : Working Humidity : Measuring Range : Packaging Dimensions :

12 VDC 0.1A 32°-122°F ≤90% 0~100% 275mm(L) x 164mm(W) x 62mm(H)





Package Contents

• 1 x Water Content Sensor
• 1 x RJ12 T-Splitter
• 1 x 16ft RJ12 Cable
