(DSD-1) Dry Contact Station for Hydro-X system
Overview

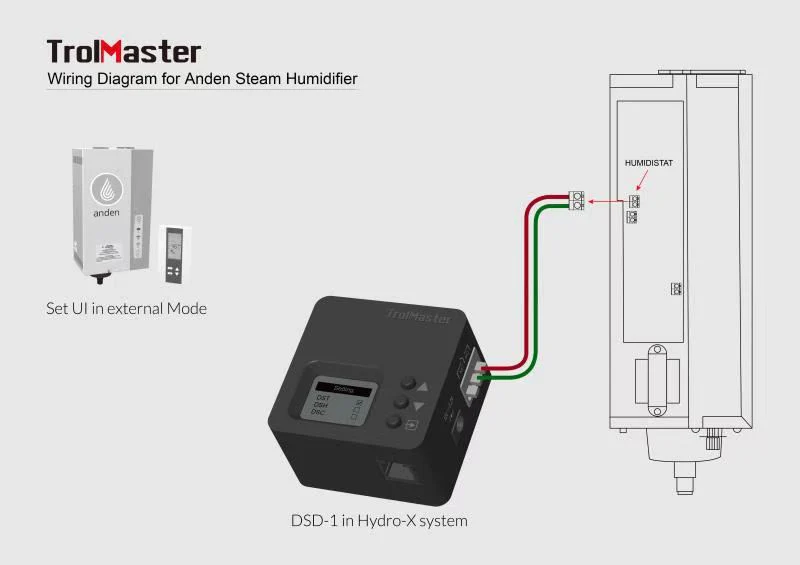

The Trolmaster DSD-1 Dry-contact module provides a simple and flexible solution to the user’s who want to connect & control devices to the Hydro-X using a “dry-contact” or relay to activate the device. Some equipment requires either normally open or normally closed contact closure in order to activate the equipment. The DSD-1 is the product that you need to control those types of devices. It can be configured to work as the other Trolmaster power modules work, such as DST, DSH, DSC, DSH.
Comes with a cable set.
Features

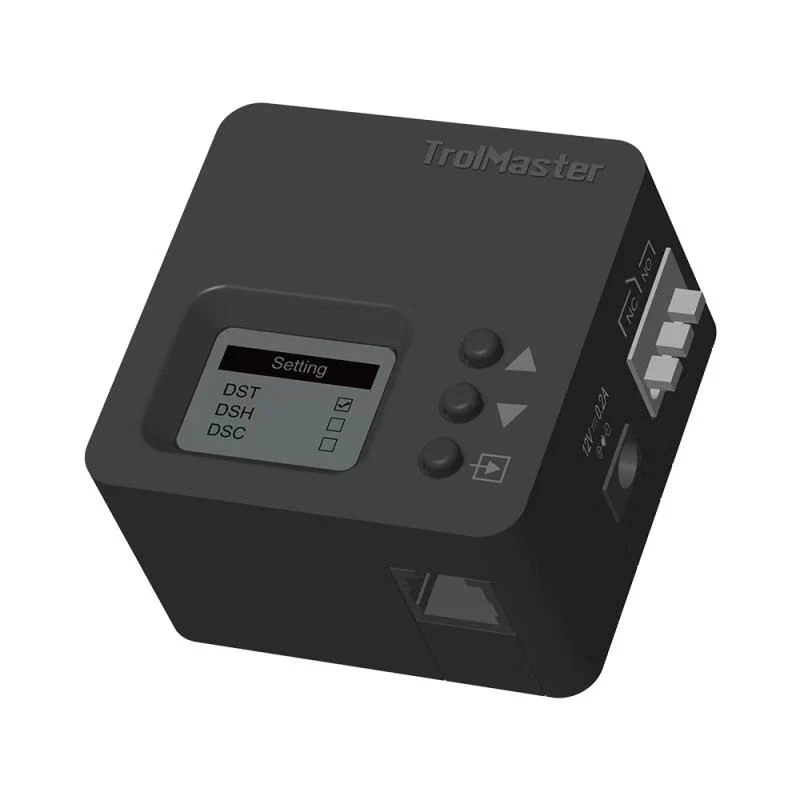

- LCD Indicator

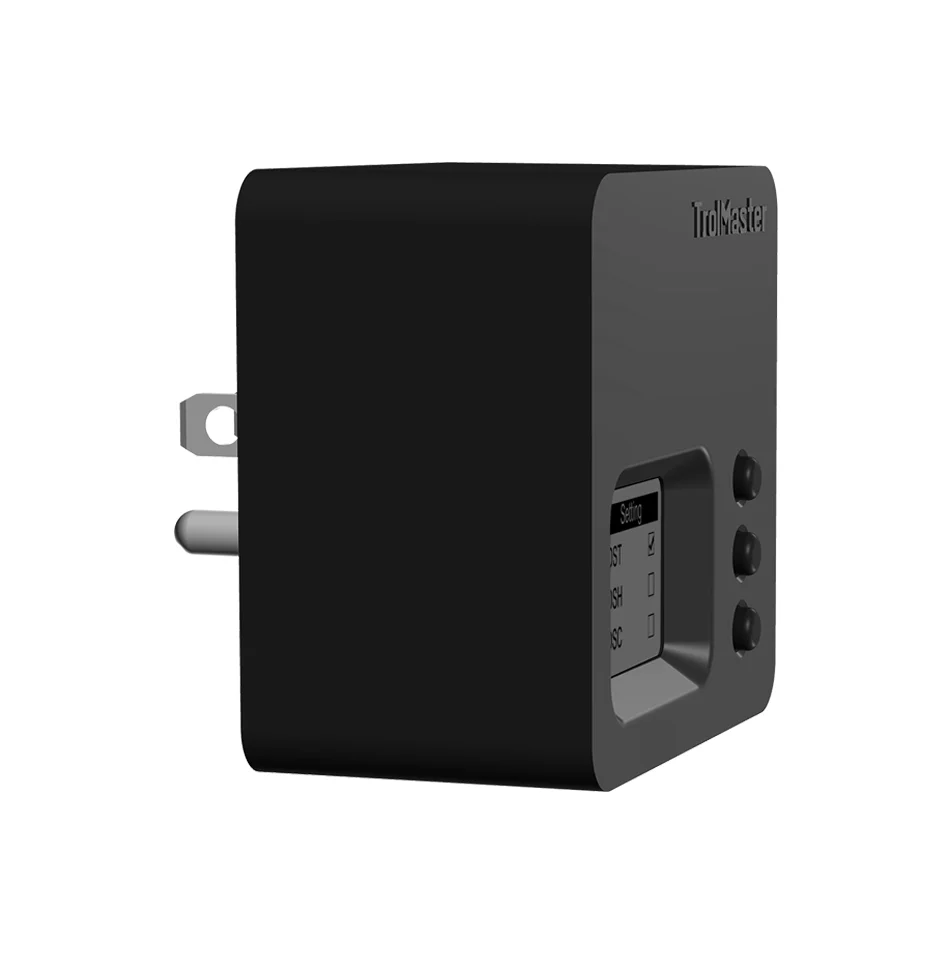

- Attaching Plug
- RJ12 Cable Socket
- Address Assignment
- Plug & Play
Specifications
|
Input Voltage : Output Current : Output Voltage : Working Temperature : Working Humidity : Packaging Dimensions : |
100~240 VAC, 50/60Hz 10A 100~240 VAC, 50/60Hz 32-122°F ≤90% 85mm(L) x 80mm(W) x 90mm(H) |
Original: $78.80
-70%$78.80
$23.64
Description
Overview
The Trolmaster DSD-1 Dry-contact module provides a simple and flexible solution to the user’s who want to connect & control devices to the Hydro-X using a “dry-contact” or relay to activate the device. Some equipment requires either normally open or normally closed contact closure in order to activate the equipment. The DSD-1 is the product that you need to control those types of devices. It can be configured to work as the other Trolmaster power modules work, such as DST, DSH, DSC, DSH.
Comes with a cable set.
Features
- LCD Indicator
- Attaching Plug
- RJ12 Cable Socket
- Address Assignment
- Plug & Play
Specifications
|
Input Voltage : Output Current : Output Voltage : Working Temperature : Working Humidity : Packaging Dimensions : |
100~240 VAC, 50/60Hz 10A 100~240 VAC, 50/60Hz 32-122°F ≤90% 85mm(L) x 80mm(W) x 90mm(H) |
