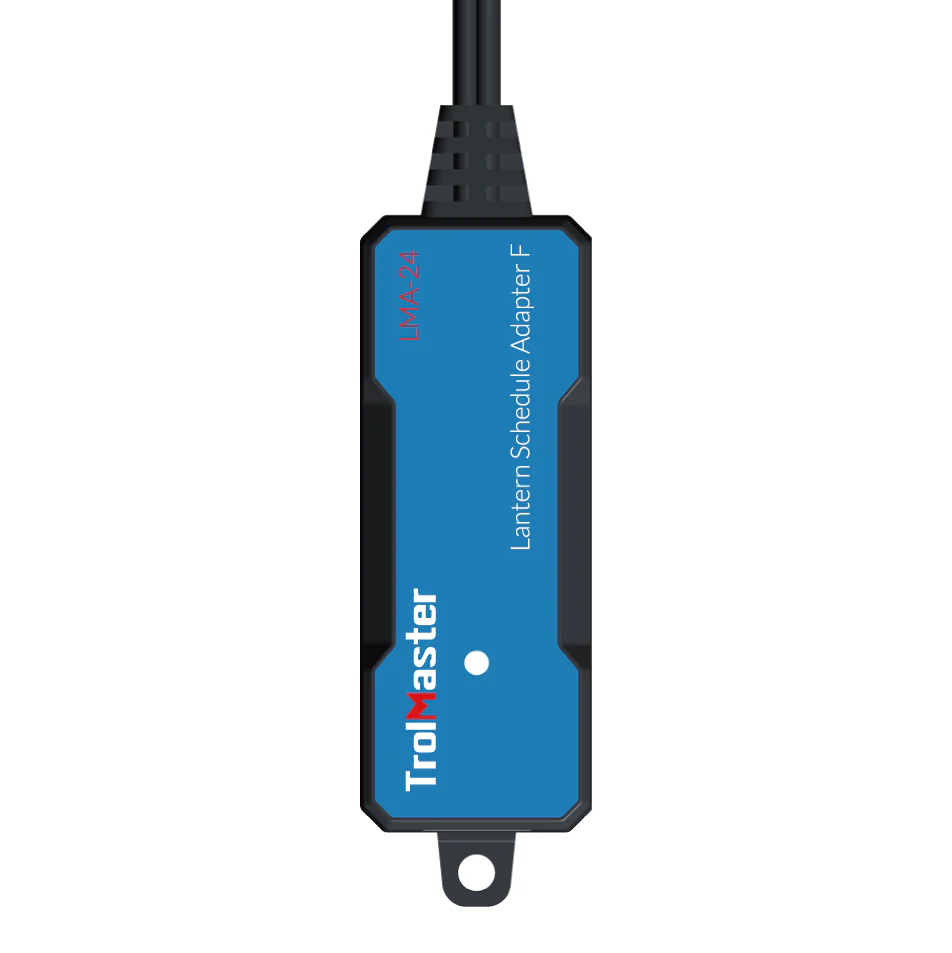

(LMA-24) Lantern Schedule Lighting Adapter

Overview

TrolMaster’s Hydro-x system can control most of the supplemental lighting fixtures sold today. Most light manufacturers provide the ability to control their lighting systems using what known as a low-volt control. That low-volt control can take many forms and communication protocols. TrolMaster makes several types of lighting adapters (LMA units) that allow the Hydro-x to control lights using their low-volt control option.

Lantern lighting schedule is a lighting routine for vegetating plants that you could find in any college grade horticulture book. It is as follows 12 hours lights on, 5.5 lights off, 1-hour lights on, 5.5 lights off, and repeat schedule. The 1 hour on in between off period fools the plants that stay in vegetative growth state.

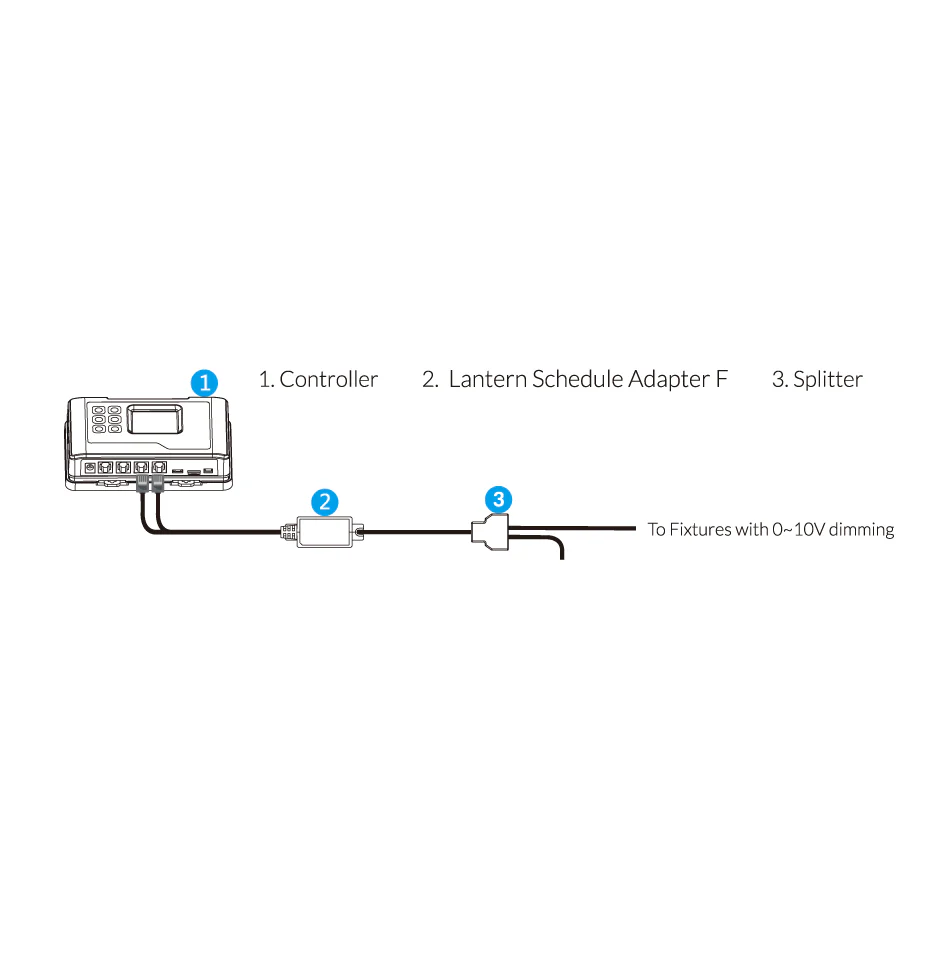

This LMA-24 lighting adapter is specially designed to use both two channels on the Hydro-X system to create a lantern schedule control for any lights with 0-10V protocol.

Features

• LED Indicator
• Convert Digital Signal to Analog Signal
• RJ12 Cable Socket
• Plug & Play

Specifications

Output Voltage :   Maximum Current :   Working Temperature : Working Humidity : Packaging Dimensions :

0~11.5V 0.2A 32-122°F ≤90% 156mm(L) x 83mm(W) x 30mm(H)
