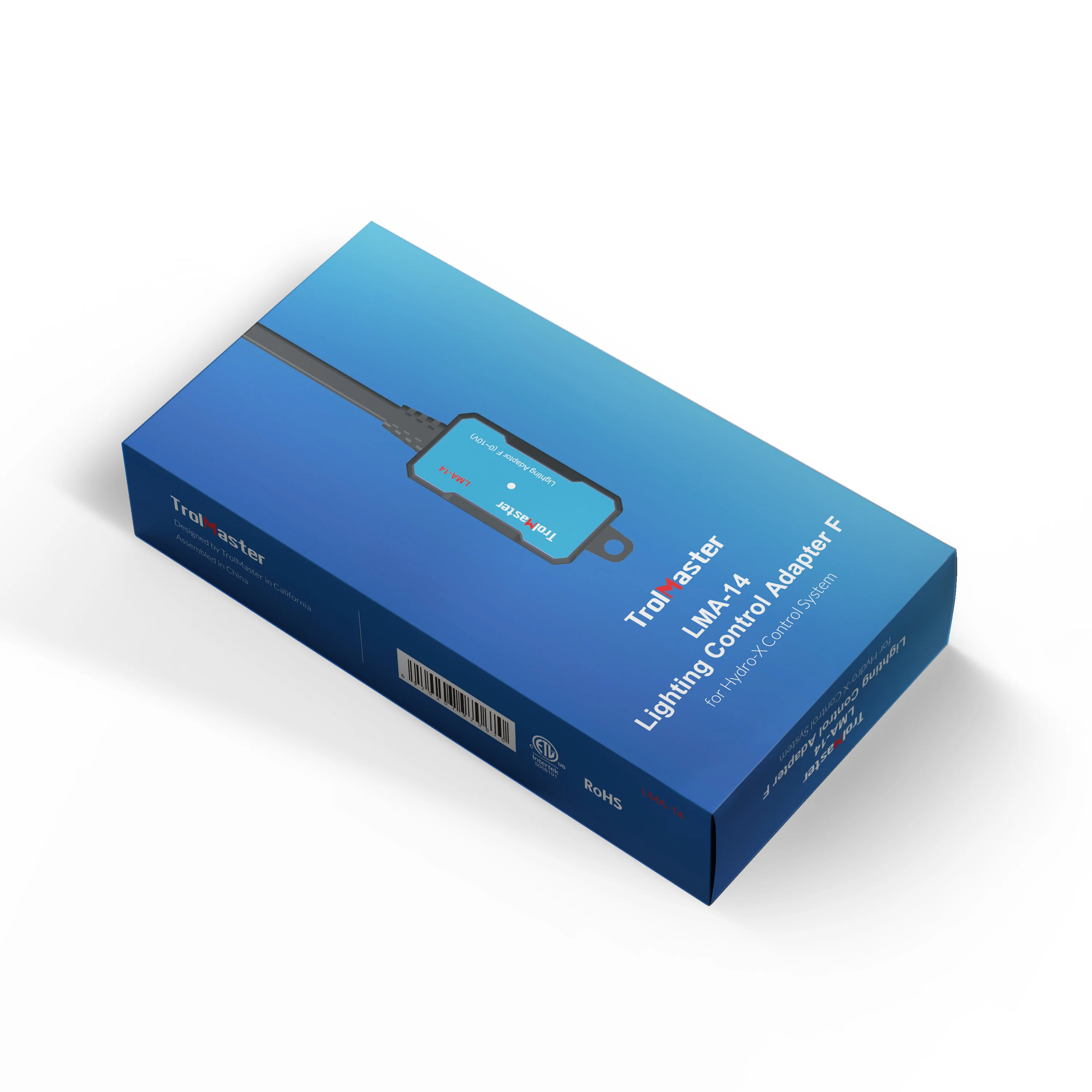

(LMA-14) Lighting Control Adapter F

Overview

TrolMaster’s Hydro-x system can control most of the supplemental lighting fixtures sold today. Most light manufacturers provide the ability to control their lighting systems using what known as a low-volt control. That low-volt control can take many forms and communication protocols. TrolMaster makes several types of lighting adapters (LMA units) that allow the Hydro-x to control lights using their low-volt control option.

This Lighting Control Adapter D (LMA-14) is compatible with Luxx, Grower's Choice, NanoLux, Gravita, Fluence, Bios, Scynce, 2 Wire 0-10V Dimming Meanwell Driver, and 0-10V Ballasts.

NOTE: Each LMA-14 can control up to 40 HID lights or 24 LEDs. Additional LMA-14 adapters can be used with the SPH-1 to control as many lights as required.

Features

• LED Indicator
• Convert Digital Signal to Analog Signal
• RJ12 Cable Socket
• Plug & Play

Specifications

Output Voltage :   Maximum Current :   Working Temperature : Working Humidity : Packaging Dimensions :

0~11.5V 0.2A 32-122°F ≤90% 156mm(L) x 83mm(W) x 30mm(H)
